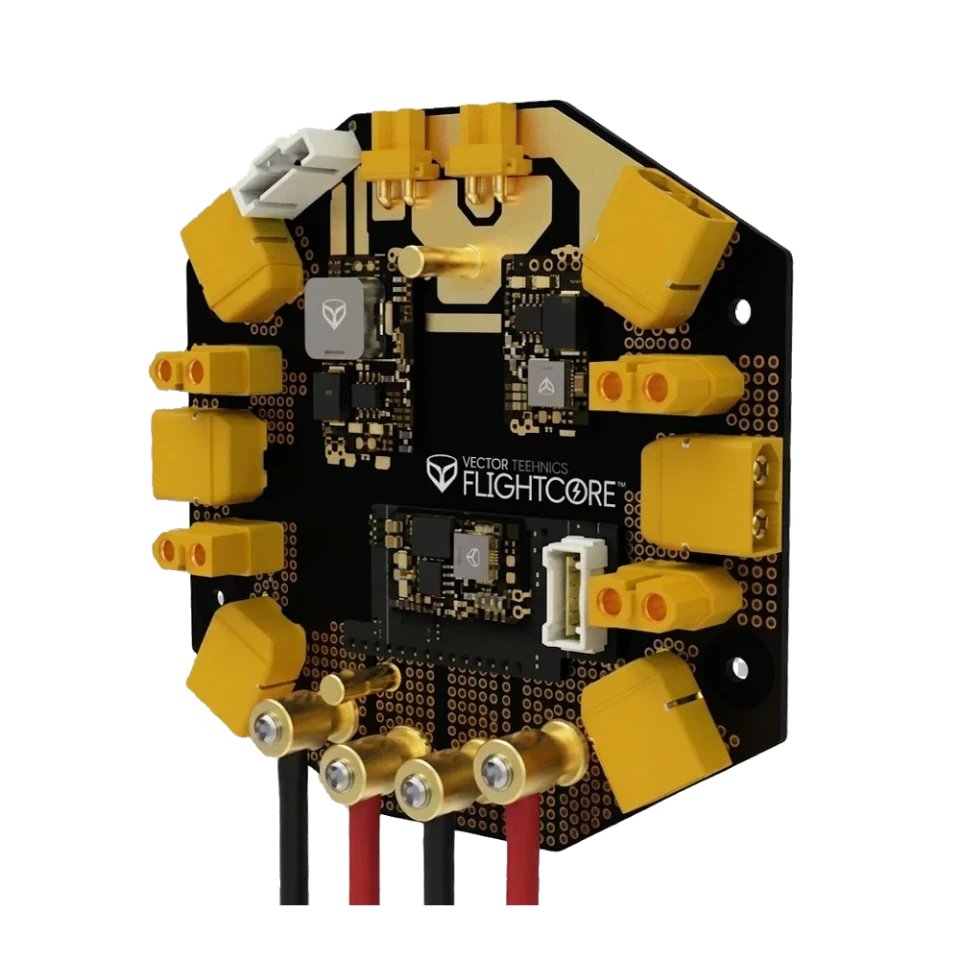

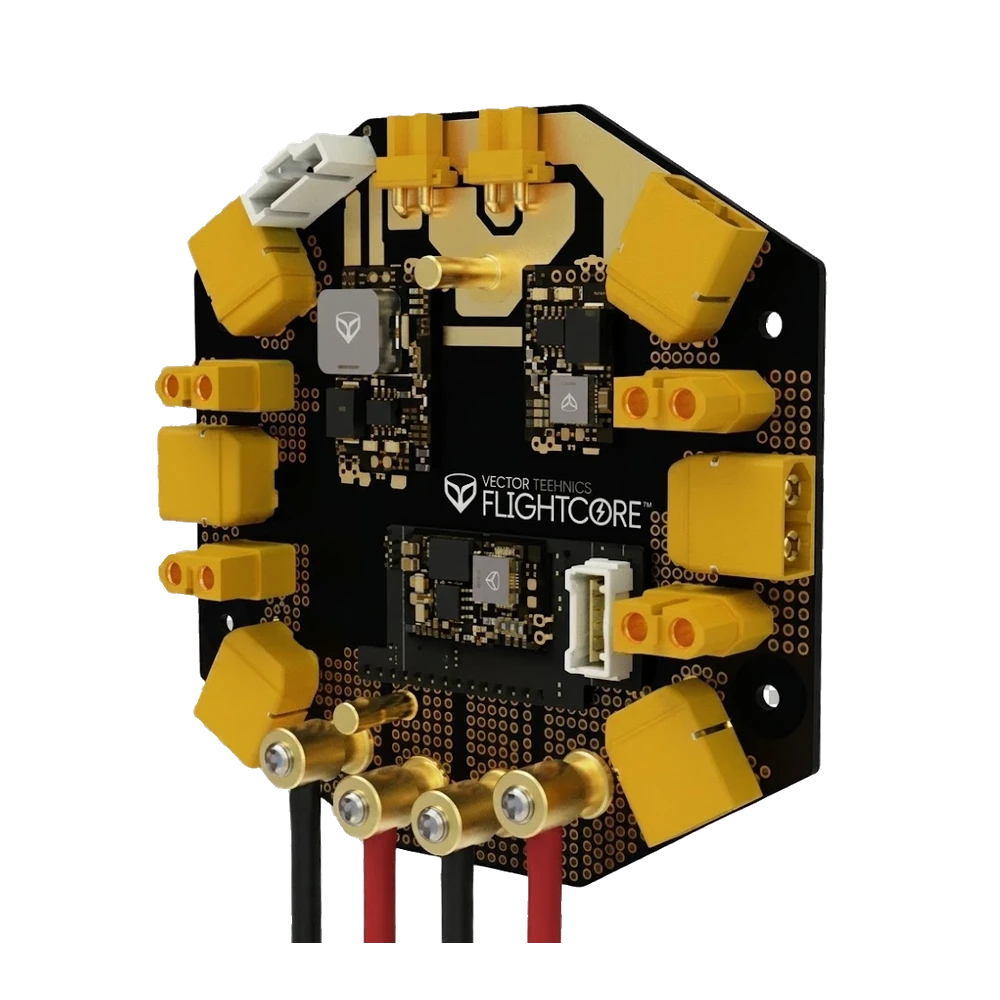

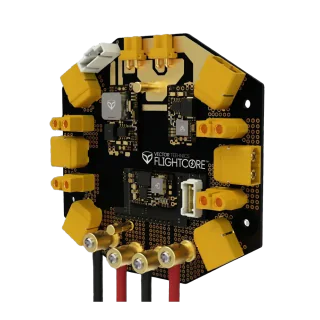

Notes:

• Voltage Range: 22.2V (6S LiPo) – 58.8V (14S LiPo)
• Robust PCB: 4 layers, temperature rated for 180°C continuous operation
• Protection: Overcurrent and short-circuit on 5V and 12V regulators
• Outputs: 6 x XT60 for motor ESCs, 4 x XT60 for payload, 2 x XT30 for auxiliary/payload
• Compact Size: Seamlessly integrates into any UAS
• Regulators: Modular switching, 12V and 5V BECs, 2A continuous current

POWER MODULE

Notes:

• Voltage Measurement (0-100V) analogue output x mV/V
• Current Measurement (0-100A) analogue output y mV/A
• DC-DC 5V BEC- 2A Continuous (For Flight Controller)

VOLTROX 5

Notes:

• DC-DC 5V BEC- 2A Continuous

VOLTROX 12

Notes:

• DC-DC 12V BEC- 2A Continuous

Physical Properties:

• Max Temperature: 180°C
• Weight: 156 ±2 grams
• Mounting: 102mm x 49mm
• Size: 110mm x 116mm x 25mm (L x B x H)
