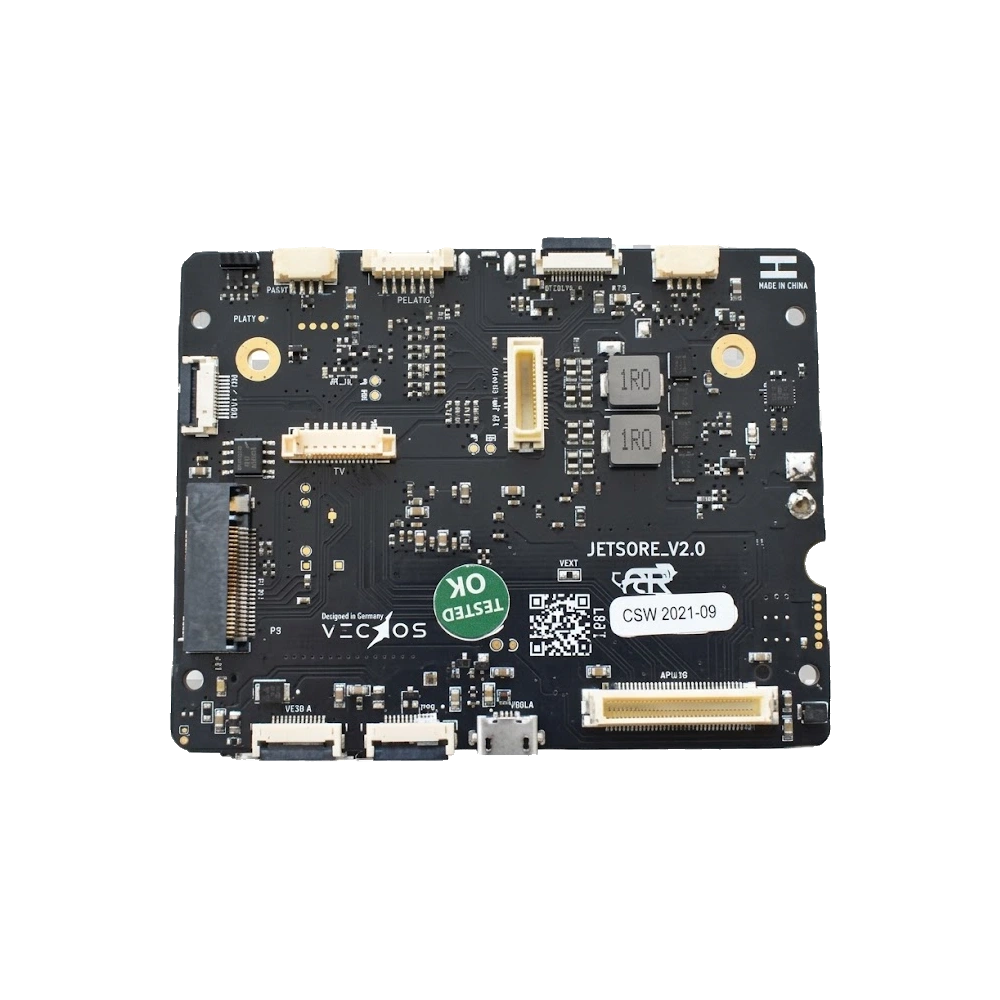

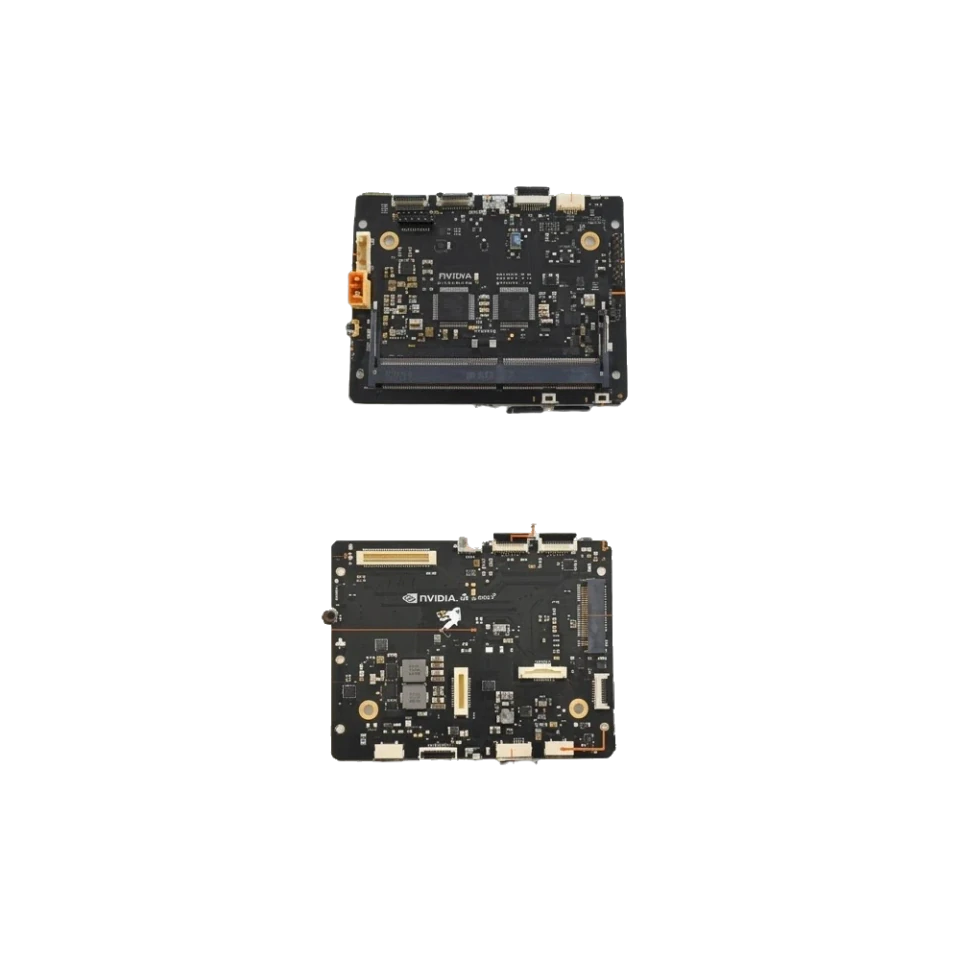

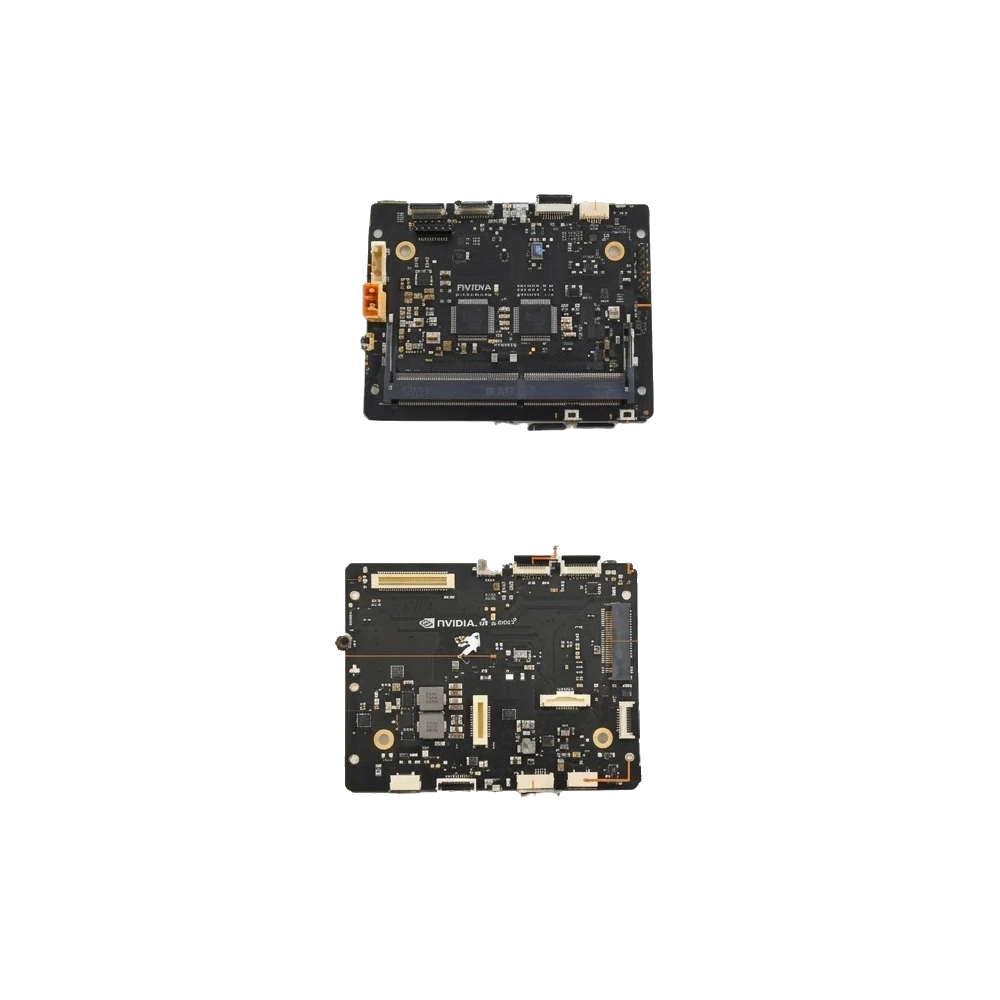

The JETCORE Carrier Board is engineered to harness the power of NVIDIA Jetson modules, providing high-performance edge computing solutions for a diverse

Range: of applications, including robotics, industrial automation, and surveillance. It boasts extensive connectivity options, advanced environmental monitoring features, and robust security measures, making it an ideal choice for integration into various systems. In the box the package would include 1x Jetcore carrier board and 1x power cable.

Key Features:

Nvidia Jetson Compatibility: Supports NVIDIA Jetson modules, including Jetson Xavier NX, Jetson Orin NX, and Jetson Nano.

USB Ports 7 x USB 2.0 (FPC Type)

Networking 1 X Gigabit Ethernet (12 PIN JST GH Connector) Video Output 1 X Micro HDMI Port (resolution: 1920 x 1080 FHD)

Storage Expansion 1 x M.2 Key M interface for NVMe SSD Environmental Monitoring Integrated Temperature & IMU for motion sensing

Security Features Built-in Crypto Auth IC for enhanced data protection

Power Supply Supports 12-18V DC input

Technical Specifications

Specification Value

Module Compatibility NVIDIA Jetson Xavier NX, Jetson Orin NX, Jetson Nano

Dimensions 88 mm x 71 mm

Operating Temperature -40°C to +85°C

Weight 40 g

Peripheral Interfaces

Interface Type Details

Graphics Interface Micro HDMI 2.0 (resolution: 1920 x 1080 FHD)

USB Ports 7 x USB 2.0 (FPC Type), 1 x USB 2.0 (Micro USB for Debugging)

Networking 1 x Gigabit Ethernet (12 PIN JST GH connector) 12-lane CSI-MIPI (via Daughterboard Connector); 2 x SPI, 1

Additional Interfaces Key Advantages

X CAN, 1 x I2C, 1 x UART (all JST GH connectors); GPIO and PWM support

Advantage Description

Performance Optimized for NVIDIA’s Xavier NX platform, offering cutting-edge AI and edge processing capabilities.

Connectivity Multiple interface options ensure seamless integration into existing systems.

Security Robust security features designed for mission-critical applications.

Durability Operates efficiently in extreme temperatures.

Software: & Compatibility

Feature Details

Software:

• Support Compatible with QGC Mission Planner
• Ardupilot
• PX4.

JetPack Versions Supports JetPack 4. x and 5. x (LTS).

NOTE: The given cost is exlcluding GST
