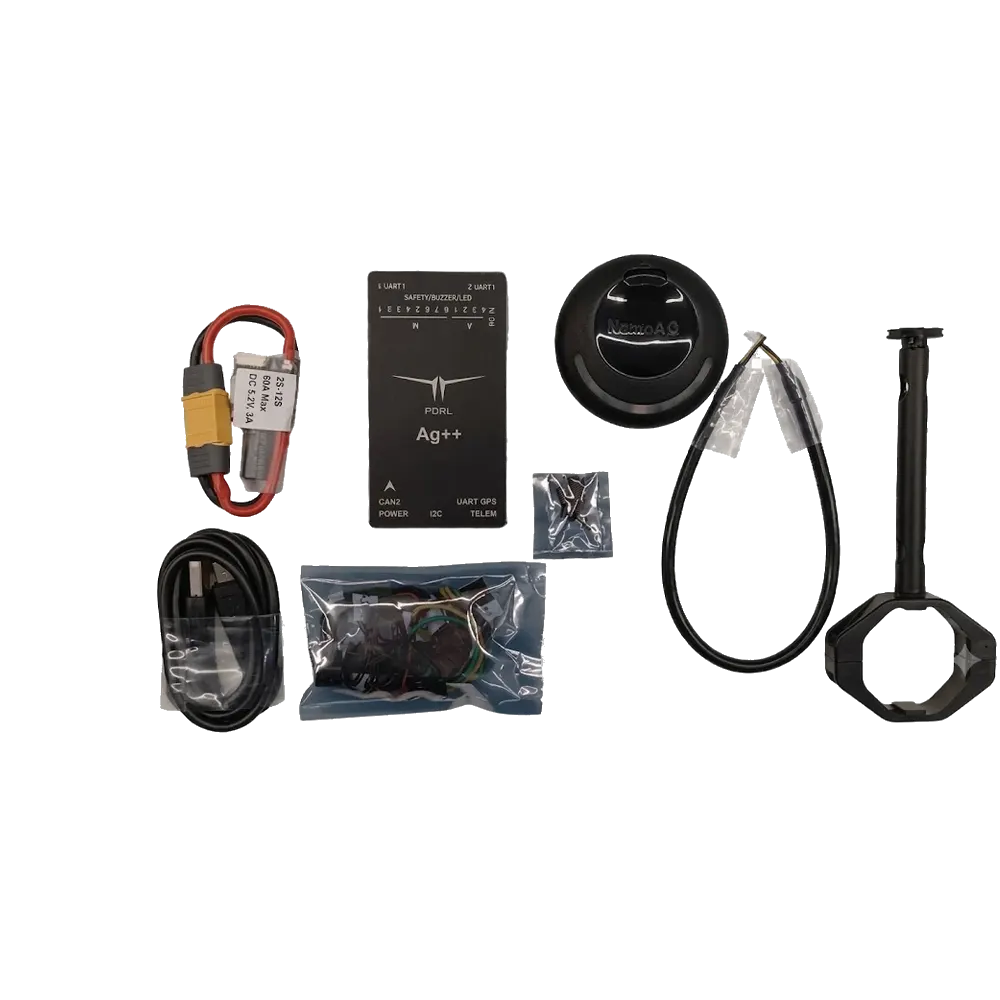

AG++ Flight Controller + NamoAG with AeroGCS Green Combo

Features

Notes:

• Professional agri-drone control + navigation combo
• Ag++ with obstacle avoidance & terrain-following
• NamoAG with 1.5 m CEP GNSS accuracy
• Multi-constellation satellite tracking
• Powered by AeroGCS Software Stack

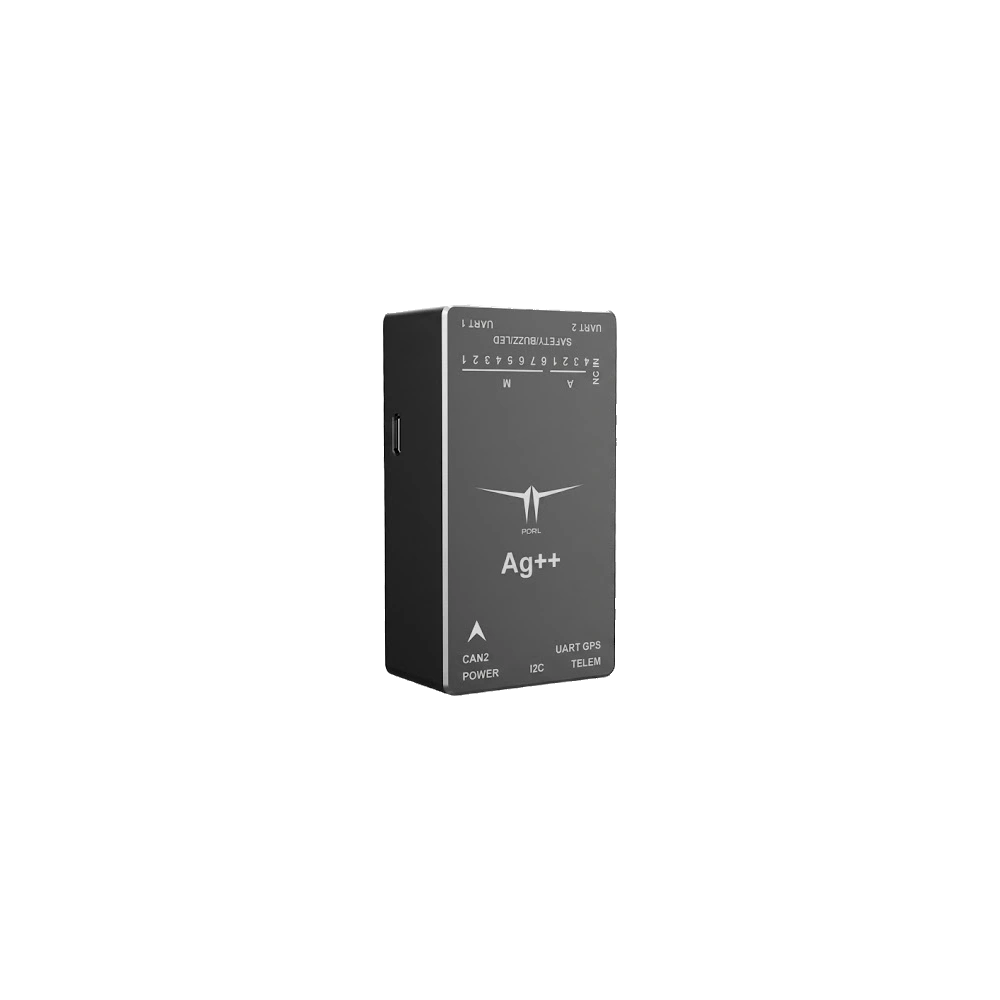

Ag++ Flight Controller

Notes:

• High-Performance Control for Modern Farming The AeroFC Ag++ Flight Controller is designed for professional agricultural drone operations, delivering unmatched stability, precision, and control. Powered by a highspeed 32-bit main processor working in sync with a dedicated I/O processor, it ensures rapid and accurate responses for every mission.
• Advanced Sensor Compatibility Supporting CAN-based front and rear obstacle avoidance radars and a CAN-based altimeter, Ag++ ensures precise terrain-following and safe navigation through complex environments. This makes it a reliable choice for operations over varied terrains and challenging field conditions.
• Flexible Connectivity Options With 8 PWM motor outputs, 4 auxiliary PWM/GPIO outputs, 2 CAN buses, and 3 UART ports, the Ag++ offers versatile setup possibilities. Dedicated R/C inputs for PPM and S. Bus signals guarantee seamless integration with a variety of drone systems.

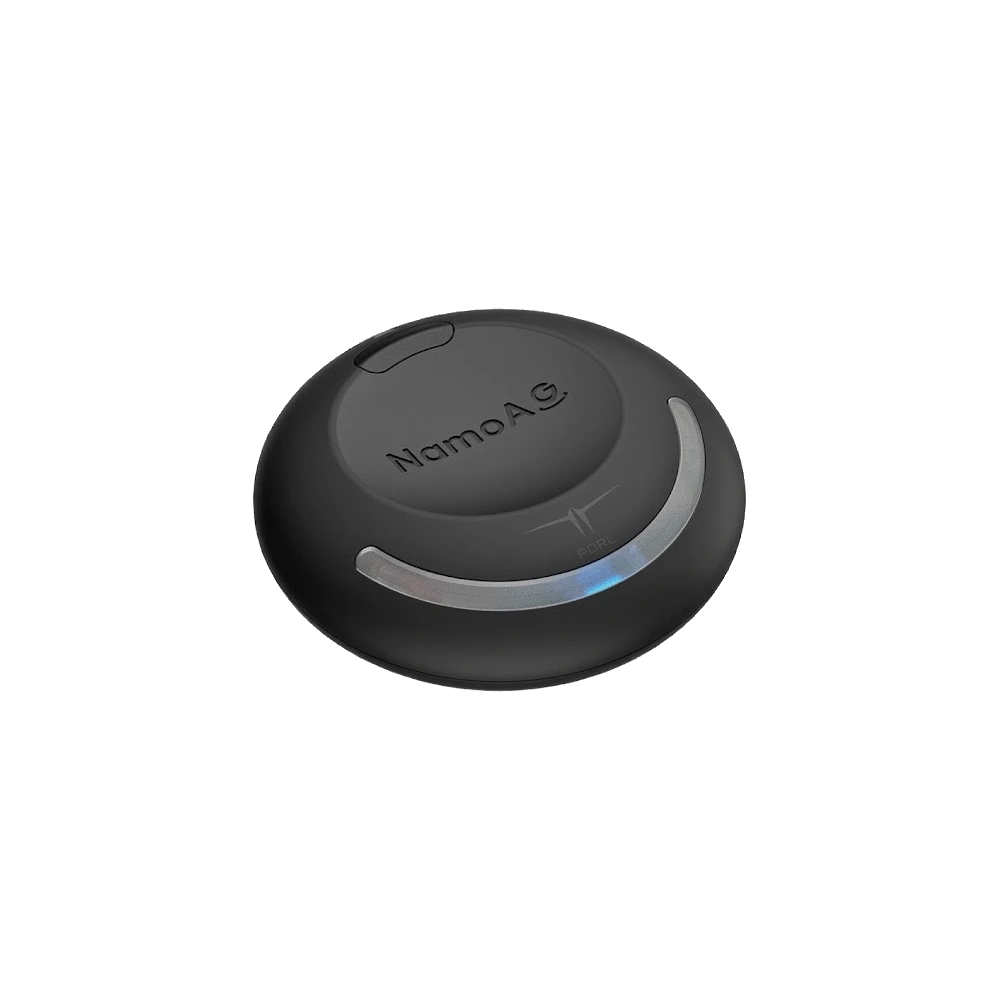

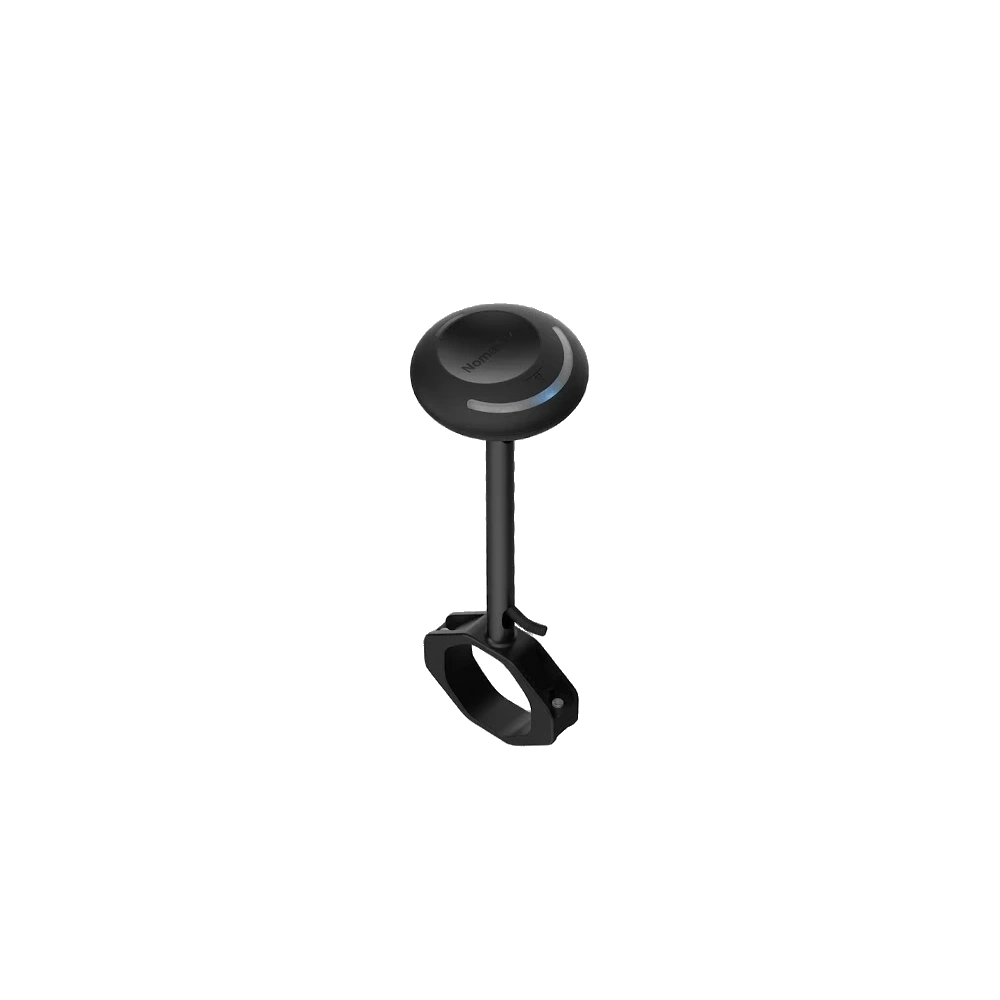

NamoAG ( Navigation for modern Agriculture)

An indigenously developed Agri-Drone Navigation device. Designed with the unique challenges of agriculture fields in mind, NamoAG delivers high-accuracy navigation, multi-constellation satellite support, and seamless pairing with Ag++ Flight Controller. From wide-open farms to complex terrains, fly with confidence.

Notes:

• Reliable Navigation in Every Field The NamoAG is an indigenously developed agri-drone navigation device that delivers 1.5 m CEP positioning accuracy. Optimized for agriculture, it provides multi-constellation satellite tracking for robust signal availability in open fields or obstructed environments.
• Precision Hardware with Compact Design Built with a u-blox NEO-M9N receiver and powered by an ARM? Cortex? -M4 STM32F4 processor, NamoAG offers powerful processing in a compact 61.82 & 24.81 mm form factor, weighing only ~30g.
• Feature-Rich for Agricultural Demands Equipped with a high-sensitivity compass, barometer, gyroscope, and accelerometer, it ensures accurate heading, altitude, and motion sensing. The DroneCAN protocol enables real-time, noise-resistant communication with flight controllers like the Ag++.

Key Specifications

Notes:

• Satellite Support: GPS L1, GLONASS L1, SBAS L1, Galileo E1, BeiDou B1, QZSS L1
• Positioning Accuracy: 1.5 m CEP
• Input Voltage: 5V DC
• Antenna: 35 mm
• Integrated Safety Switch, Buzzer, and LEDs for status indication

AeroGCS Software Stack

Notes:

• AeroGCS Green AeroGCS GREEN, India’s rest IV&V-certified precision spraying software, ensures uniform spraying, simplifies mission planning, and boosts efficiency with features like obstacle avoidance, spray flow monitoring, and detailed reporting.
• Software Support:

The Following Software Will Be Supported:

• AeroGCS GREEN (Android)
• AeroGCS Config (Desktop)
• AeroGCS Enterprise (Web)
• Custom Firmware
• Supported External Sensors:
• CAN HUB-12 JIYI
• H30 Altimeter JIYI (CAN protocol)
• R21 Radar JIYI (CAN protocol)
• GPS Here 3+ Holybro
• PM02 V3 Power Module Holybro
• Hobbywing Motors
• Remote Controllers: T12 and MK15
