Features

Notes:

• Dual-processor system with 32-bit architecture
• Supports obstacle avoidance radars and terrain-following altimeter
• 8 PWM motor outputs, 2 CAN buses, 3 UART ports
• Compatible with any open-source firmware and ground control software.

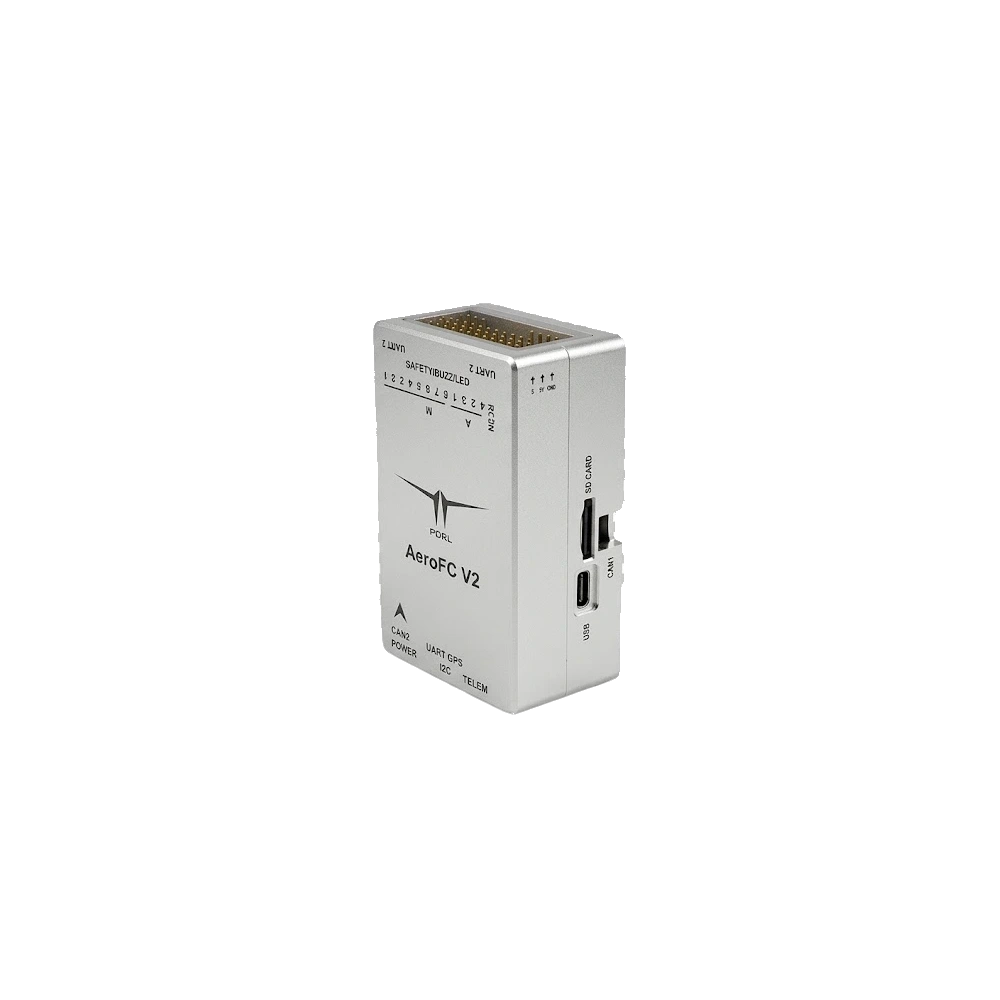

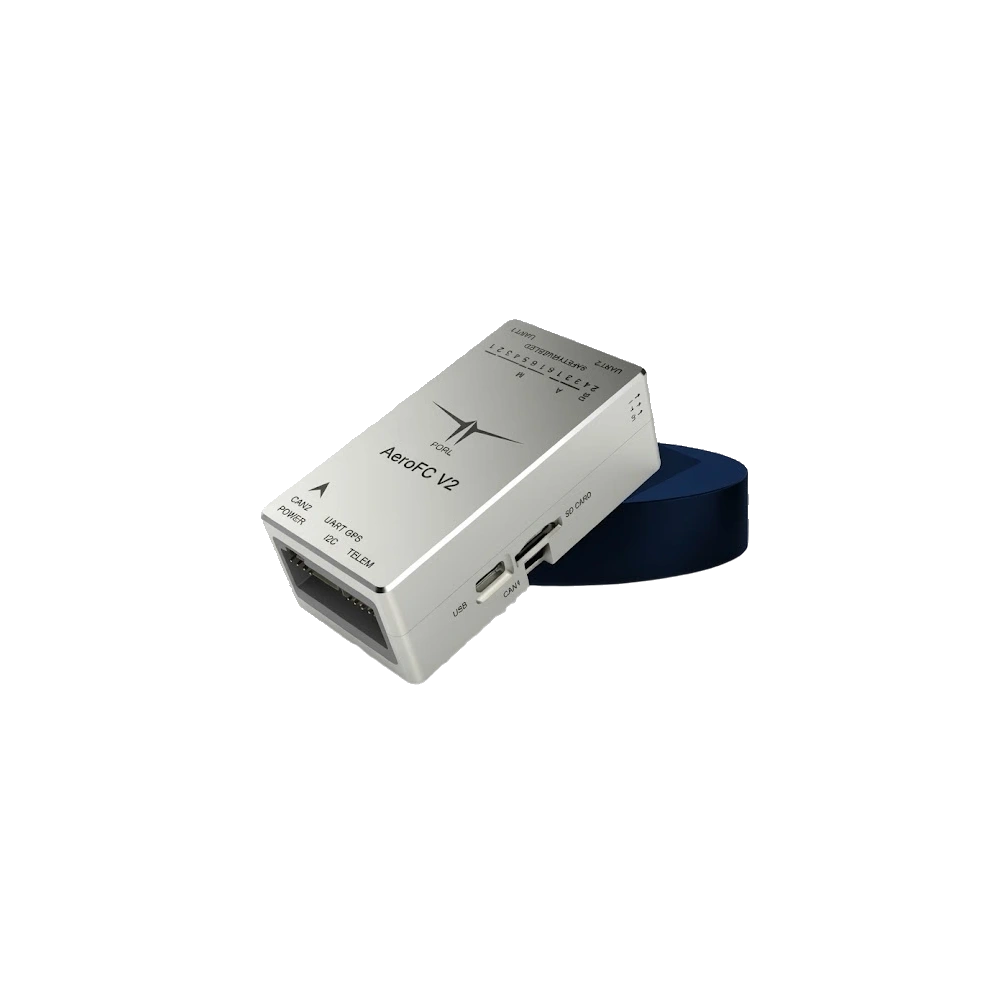

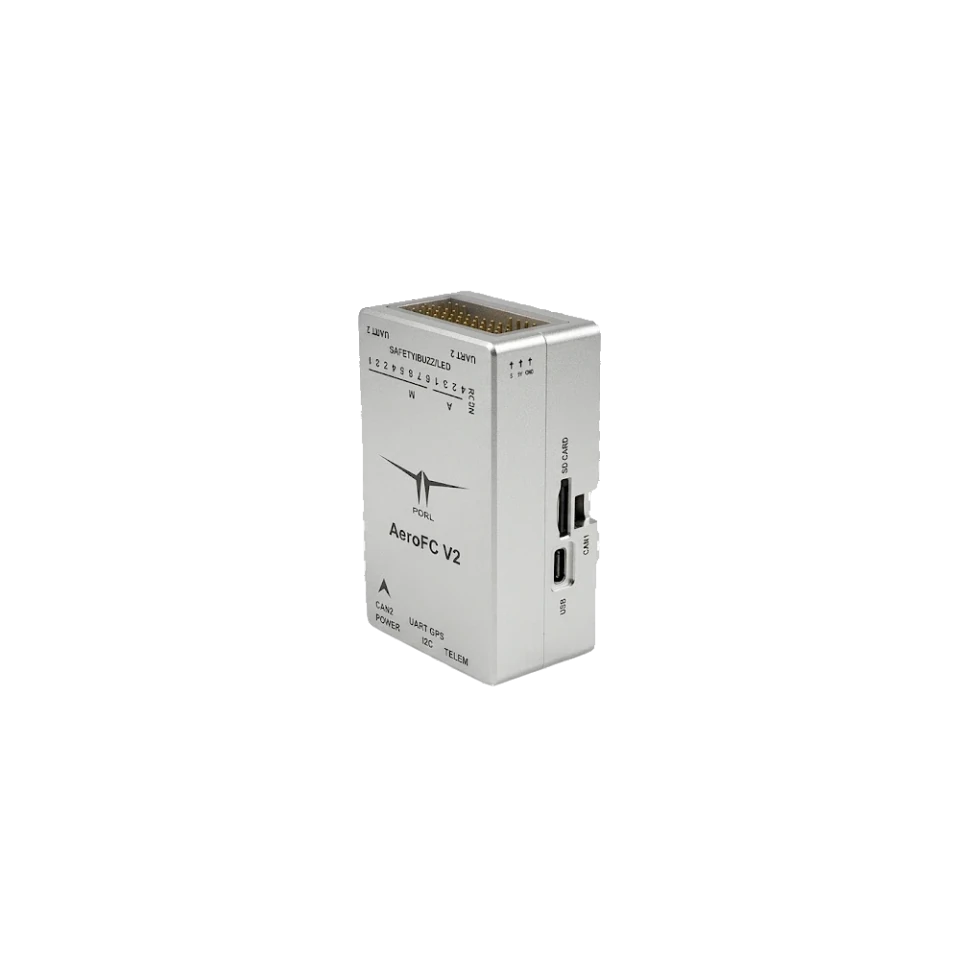

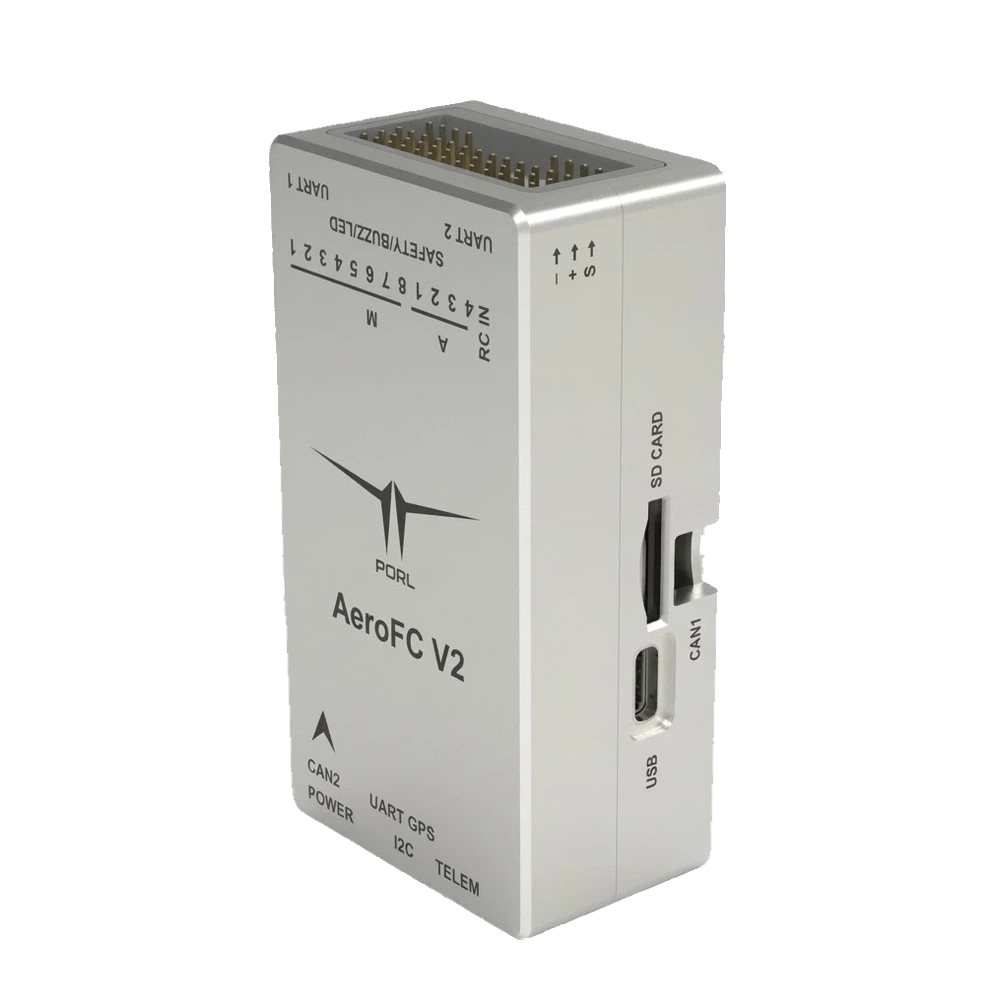

AeroFC V2 is a next-generation, high-performance flight controller engineered to power any drone, any mission, anywhere. Designed and built in India, it brings together precision, reliability, and intelligent control to support everything from agriculture and mapping to logistics, surveillance, inspection, and custom UAV innovations. With full compatibility for any open-source firmware and ground control software.

SUPERIOR PROCESSING POWER

AeroFC V2 Flight Controller is powered by a high-performance main processor built on a 32-bit

Architecture, running at high speed. It operates alongside an efficient I/O processor to

Manage input and output seamlessly.

ADVANCED EXTERNAL SENSOR SUPPORT

AeroFC V2 Flight Controller supports CAN-based front and back obstacle avoidance radars, allowing your drone to navigate complex environments with ease. Additionally, the CAN-based altimeter provides precise terrain – following capabilities, ensuring stable and accurate flights even in rugged or varied landscapes.

Notes:

• CAN-Based Front and Back Obstacle Avoidance Radars
• Provides Precise Terrain-Following Capabilities

BROADER CONNECTIVITY FOR FLEXIBILITY

AeroFC V2 Flight Controller offers 8 PWM outputs for motors, 4 auxiliary PWM/GPIO outputs, and 2 CAN buses, 3 UART ports for complex configurations and seamless connectivity. The dedicated R/C inputs for PPM and S. Bus signals ensure compatibility with a wide

Range: of external systems, giving you ultimate exibility in customizing your drone setup.

Notes:

• AeroFC V2 offers 8 PWM outputs for motors
• 4 auxiliary PWM/GPIO outputs
• 2 CAN buses, 3 UART ports
• Dedicated R/C inputs for PPM and S

ENHANCED SENSORS FOR PRECISION

AeroFC V2 Flight Controller features a highly advanced sensor suite with precision accelerometers, gyroscopes, a magnetometer, and dual barometers, ensuring exceptional accuracy in motion detection, altitude, and orientation measurements.

Compact Yet High-Performing

With a compact size of 89 x 45 x 39 mm and weighing only 80g, the AeroFC V2 is full compatibility for any open-source firmware and ground control software.
