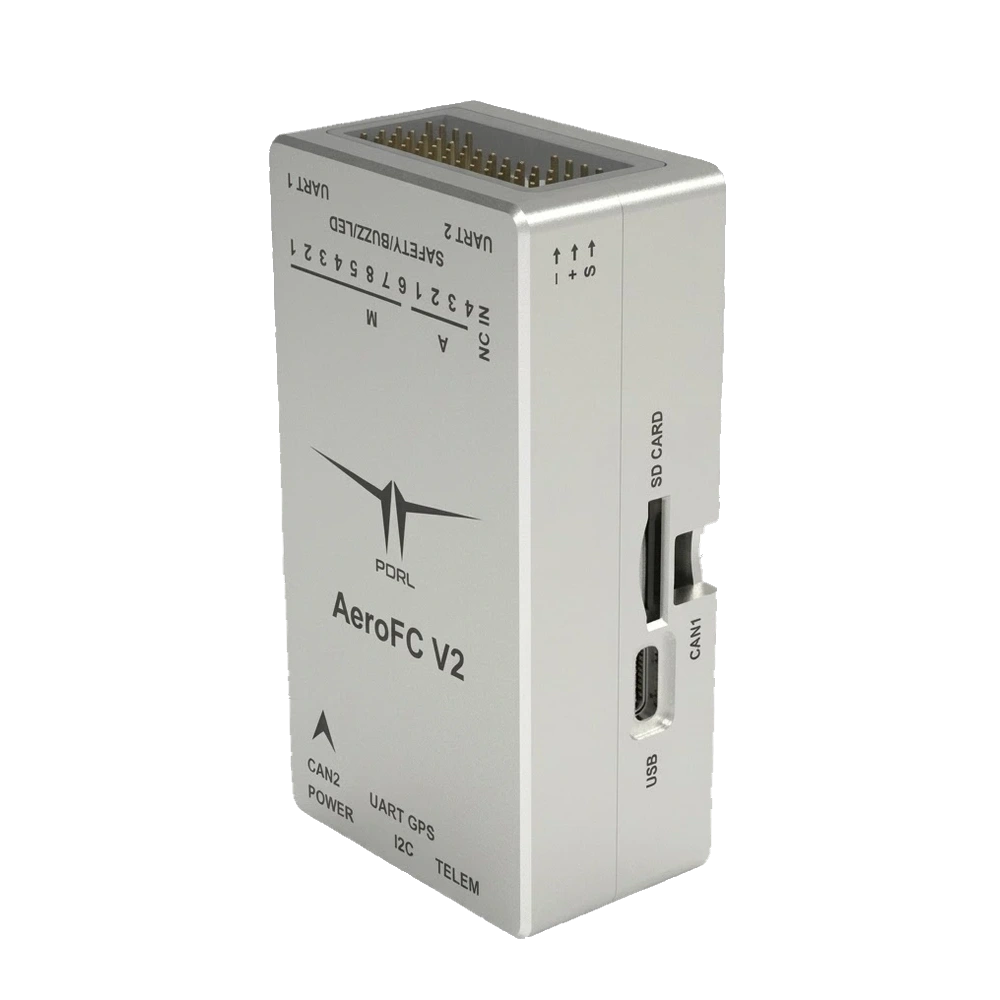

Ag++ (FC) + NamoAG (Navigation for modern Agriculture) GPS Combo

Features

Notes:

• Dual-processor system with 32-bit architecture
• Supports obstacle avoidance radars and terrain-following altimeter
• 8 PWM motor outputs, 2 CAN buses, 3 UART ports
• Compatible with any open-source firmware and ground control software.

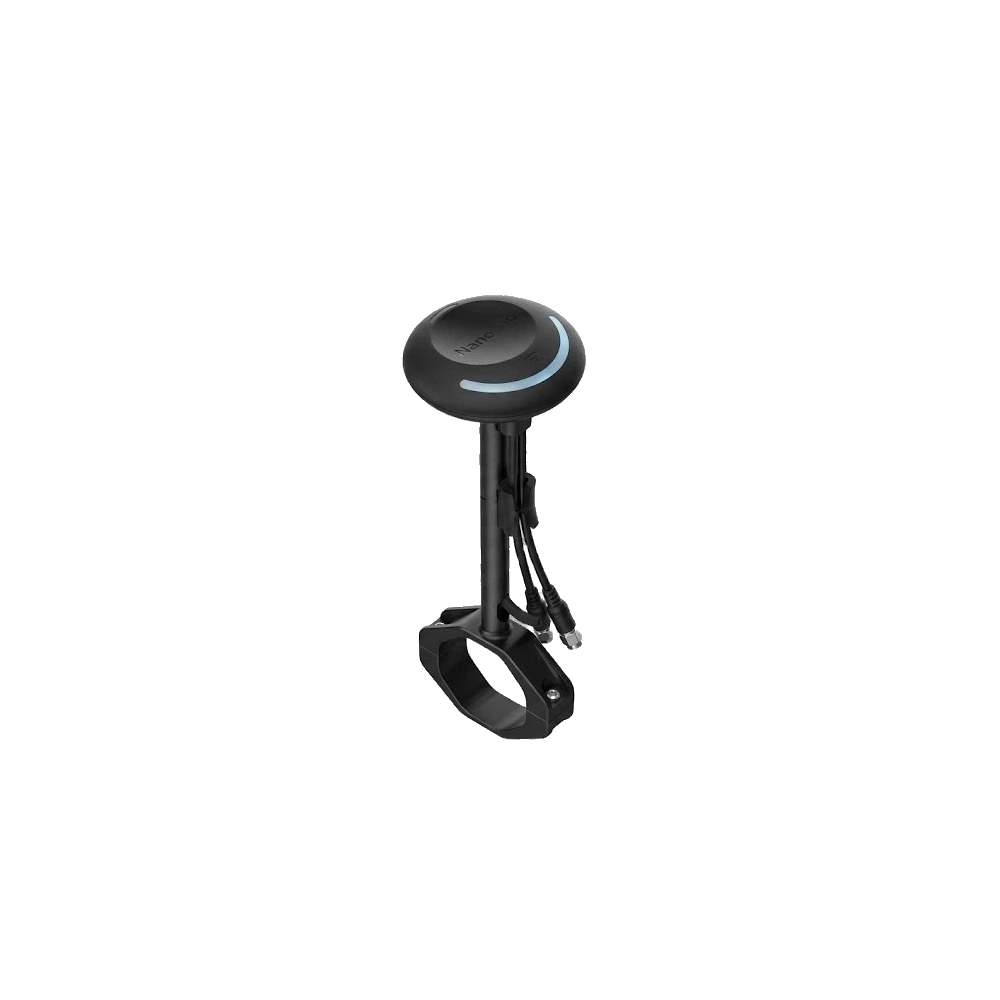

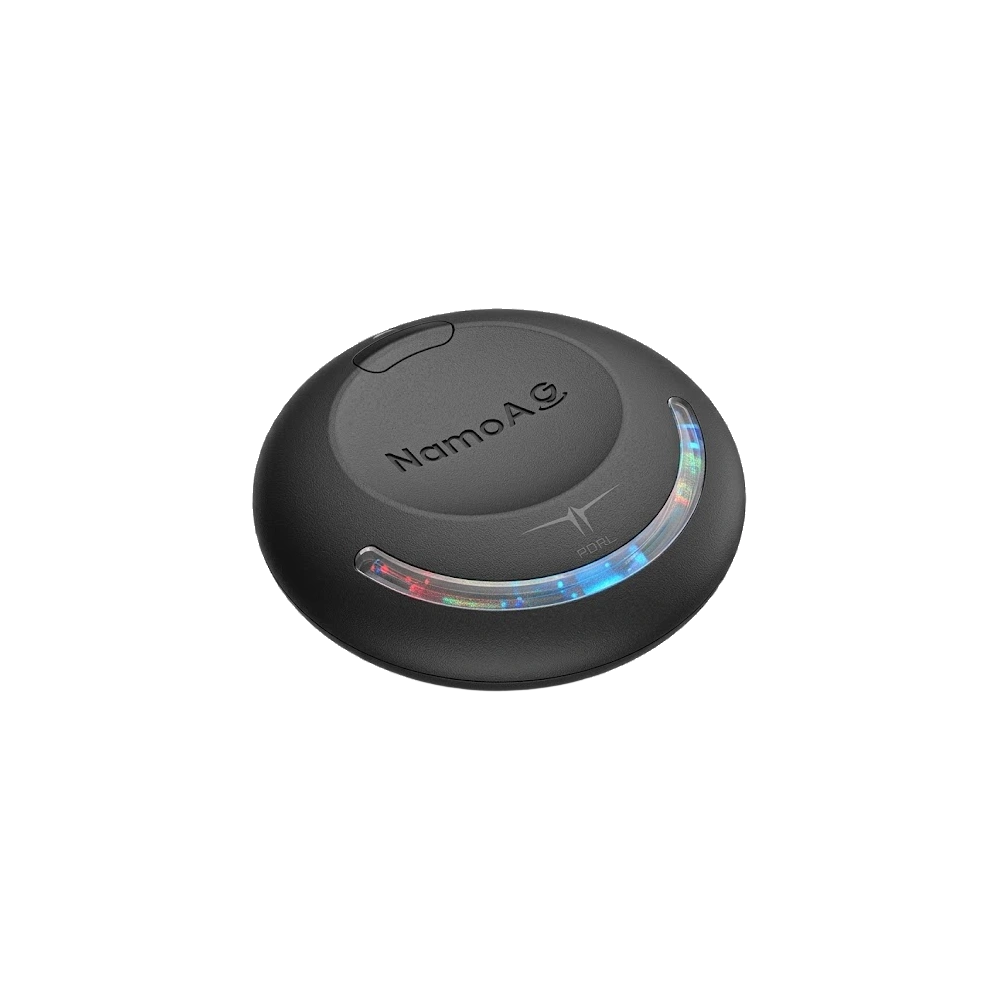

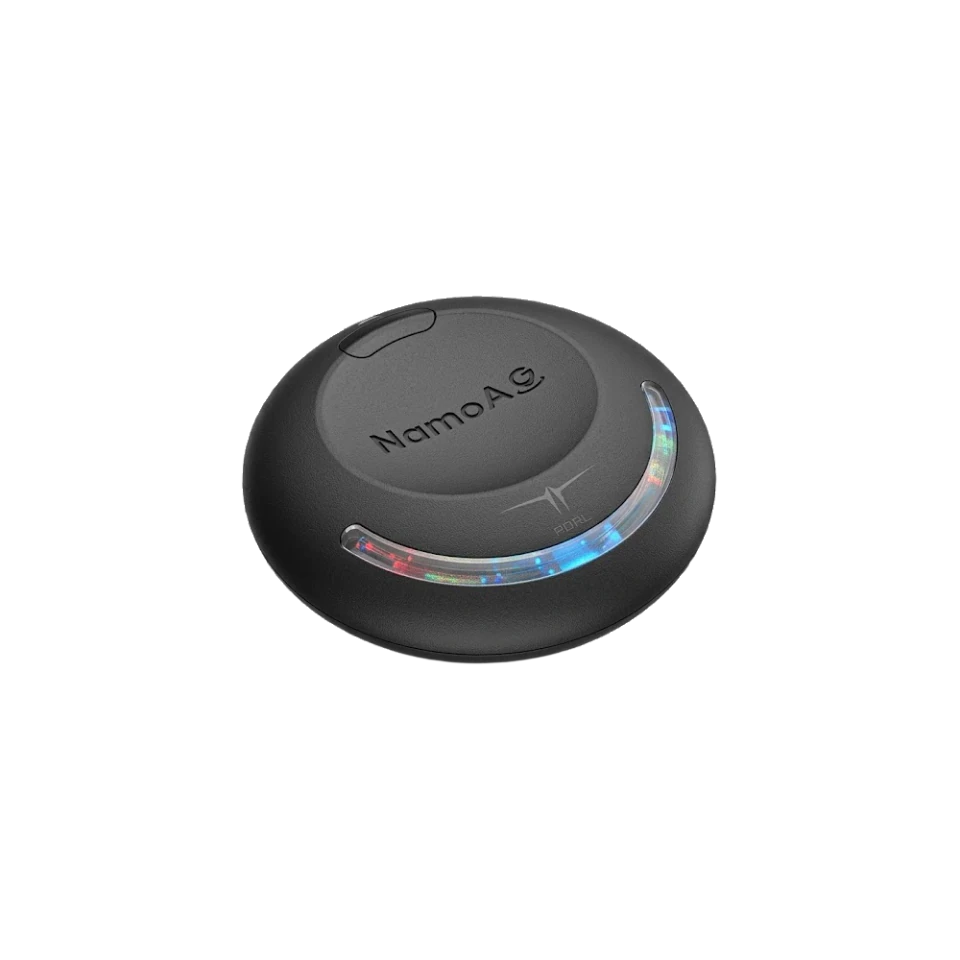

NamoAG ( Navigation for modern Agriculture)

An indigenously developed Agri-Drone Navigation device. Designed with the unique challenges of agriculture fields in mind, NamoAG delivers high-accuracy navigation, multi-constellation satellite support, and seamless pairing with Ag++ Flight Controller. From wide-open farms to complex terrains, fly with confidence.

Notes:

• Reliable Navigation in Every Field: The NamoAG is an indigenously developed agri-drone navigation device that delivers 1.5 m CEP positioning accuracy. Optimized for agriculture, it provides multi-constellation satellite tracking for robust signal availability in open fields or obstructed environments.
• Precision Hardware with Compact Design: Built with a u-blox NEO-M9N receiver and powered by an ARM? Cortex? -M4 STM32F4 processor, NamoAG offers powerful processing in a compact 61.82 & 24.81 mm form factor, weighing only ~30g.
• Feature-Rich for Agricultural Demands: Equipped with a high-sensitivity compass, barometer, gyroscope, and accelerometer, it ensures accurate heading, altitude, and motion sensing. The DroneCAN protocol enables real-time, noise-resistant communication with flight controllers like the Ag++.

Key Specifications

Notes:

• Satellite Support: GPS L1, GLONASS L1, SBAS L1, Galileo E1, BeiDou B1, QZSS L1
• Positioning Accuracy: 1.5 m CEP
• Input Voltage: 5V DC
• Antenna: 35 mm
• Integrated Safety Switch, Buzzer, and LEDs for status indication
